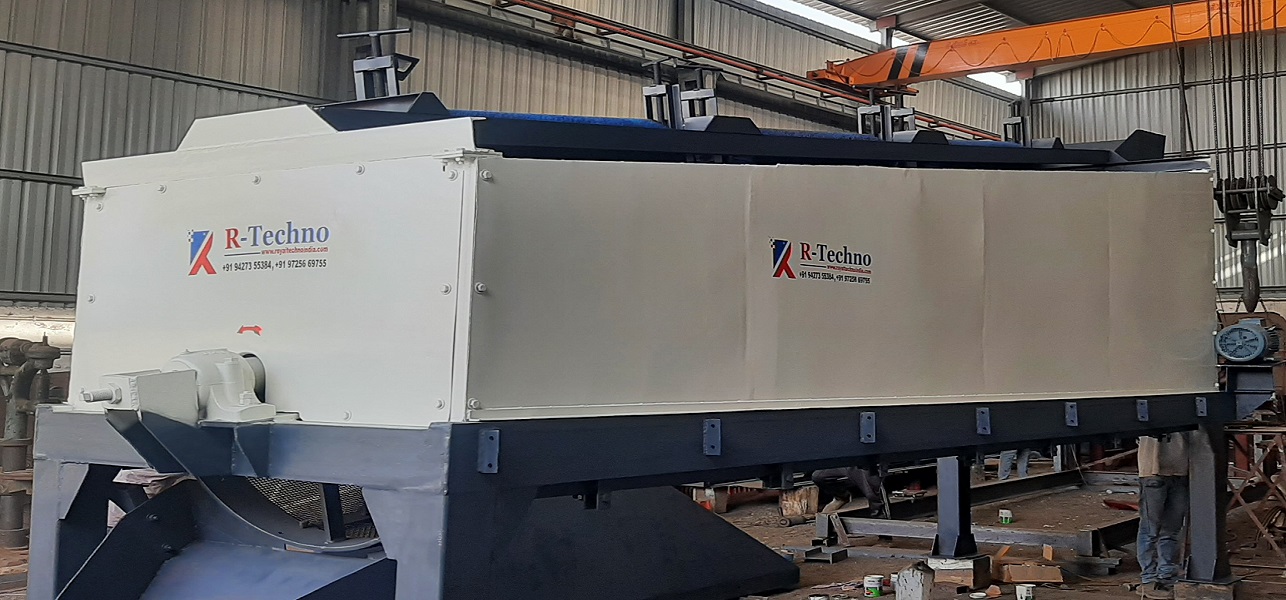

Rotary Screen (Trommel)
R-TECHNO Rotary Screens are suitable for wet material especially for river sand. Screen has rotary drum like structure mounted on heavy duty pillow bearings and drive through reduction gear. River sand often comes with moisture hence pores get clogged in normal vibrating screen, to prevent these problems rotary screen is designed to have brushes over the screen which rotates with screen. This screen also used in segregation of minerals and fine powders.
Salient Features:
- Excellent accuracy for separation
- Sharper sizing end products with higher capacity and lower costs
- Convenient & less maintenance and safe operation
| MODEL | LENGTH / DIA. (mm) | POWER* (HP) | SCREENING CAPACITY* (TPH) |
|---|---|---|---|
| RTI-103RS | 3000 x 900 | 5 | 15 - 20 |
| RTI-123RS | 3600 x 750 | 3 | 2 - 20 (Ramming mass) |
| RTI-123RS | 3600 x 750 | 5 | 20 - 30 |
| RTI-164RS | 4800 x 1200 | 7.5 - 10 | 30 - 50 |
| RTI-185RS | 5400 x 1500 | 10 - 12.5 | 60 - 80 |
| RTI-205RS | 6000 x 1500 | 15 - 20 | 90 - 120 |
