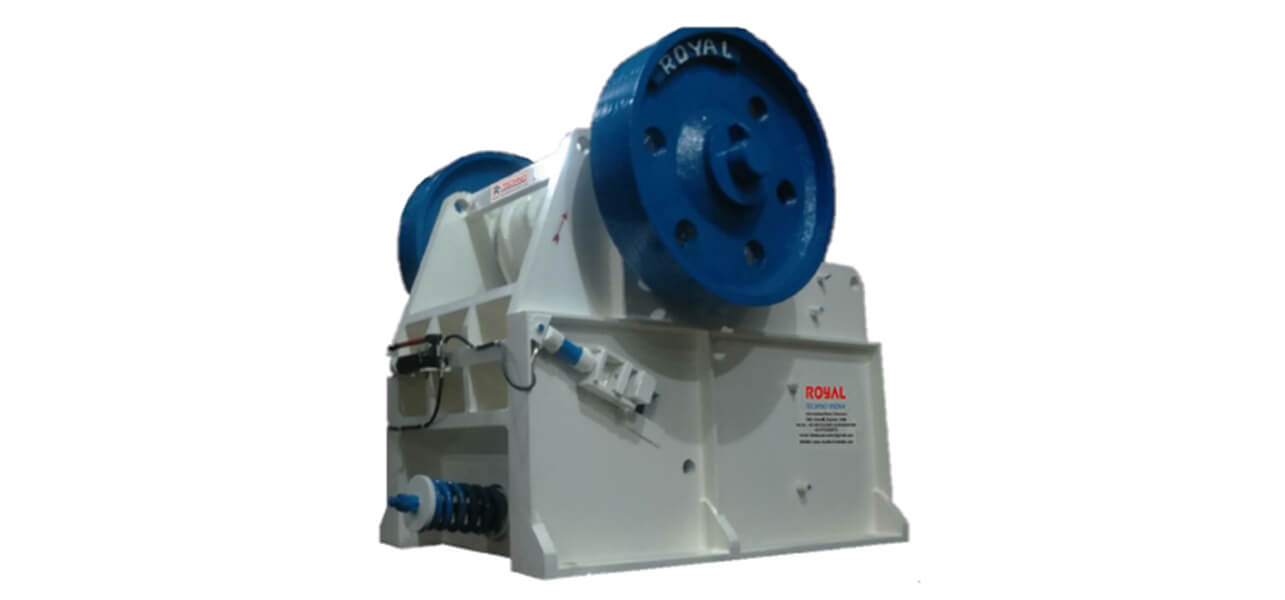

Single toggle grease type jaw crusher
CRUSHERR-TECHNO offers complete range of single toggle jaw crushers for all types of rock, ores & minerals. These crushers are designed to operate in most rugged environment and need less maintenance. Available from 5 TPH to 200 TPH Capacity machine R-TECHNO’s range of single toggle jaw crushers are designed with an upward facing toggle system. This produces a “Flat Elliptical Movement” at the bottom of the swing jaw which increases the efficiency of the crushing. The Unique Elliptical motion of the swing jaw guarantees a highly efficient production rate at every setting. This special motion of the jaw also minimizes scrubbing action common in single toggle jaw crushers. The capacity of jaw crusher can be maximized by providing continuous regulated feed. The under size material (below CSS) should be removed from the feed to eliminate packing and excessive wear on the jaws. These crushers are designed for exceptionally heavy duty and continuous operations. These are well suited for stationary and mobile applications.
MODEL | SIZE (mm) | POWER* (HP) | CAPACITY*(TPH) | MAX. FEED SIZE (mm) |
---|---|---|---|---|
RTI-127GJC | 300 x 175 mm | 3 - 5 | 2 - 5 | 100 - 150 |
RTI-169GJC | 400 x 225 mm | 10 - 15 | 7 - 12 | 150 - 200 |
RTI-2012GJC | 500 x 300 mm | 25 - 30 | 15 - 18 | 200 - 250 |
RTI-2412GJC | 600 x 300 mm | 30 | 20 - 25 | 200 - 250 |
RTI-2414GJC | 600 x 350 mm | 30 - 40 | 25 - 30 | 250 - 300 |
RTI-309GJC | 750 x 225 mm | 40 | 20 - 25 | 175 - 200 |
RTI-3015GJC | 750 x 375 mm | 40 - 50 | 30 - 35 | 300 - 325 |
RTI-3020GJC | 750 x 500 mm | 50 - 60 | 50 - 55 | 400 - 450 |
RTI-3024GJC | 750 x 600 mm | 75 | 60 - 70 | 500 - 550 |
RTI-368GJC | 900 x 200 mm | 50 - 60 | 25 - 30 | 125 - 175 |
RTI-428GJC | 1050 x 200 mm | 60 - 75 | 30 - 40 | 125 - 175 |
RTI-488GJC | 1200 x 200 mm | 75 - 100 | 45 - 50 | 125 - 175 |
RTI-3624GJC | 900 x 600 mm | 100 | 80 - 100 | 500 - 550 |
RTI-3628GJC | 900 x 700 mm | 100 - 120 | 100 - 115 | 600 - 650 |
RTI-4232GJC | 1050 x 800 mm | 150 - 180 | 180 - 200 | 700 - 750 |
RTI-4236GJC | 1050 x 900 mm | 180 - 215 | 200 - 220 | 800 - 850 |
RTI-4836GJC | 1200 x 900 mm | 215 - 240 | 220 - 250 | 800 - 850 |
