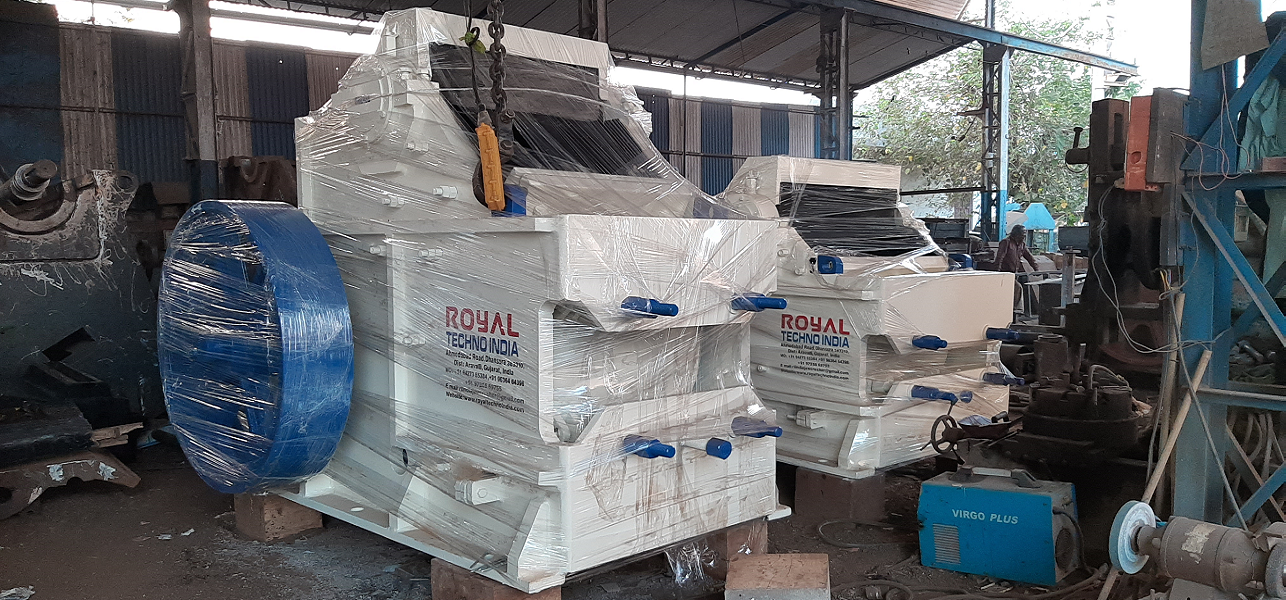

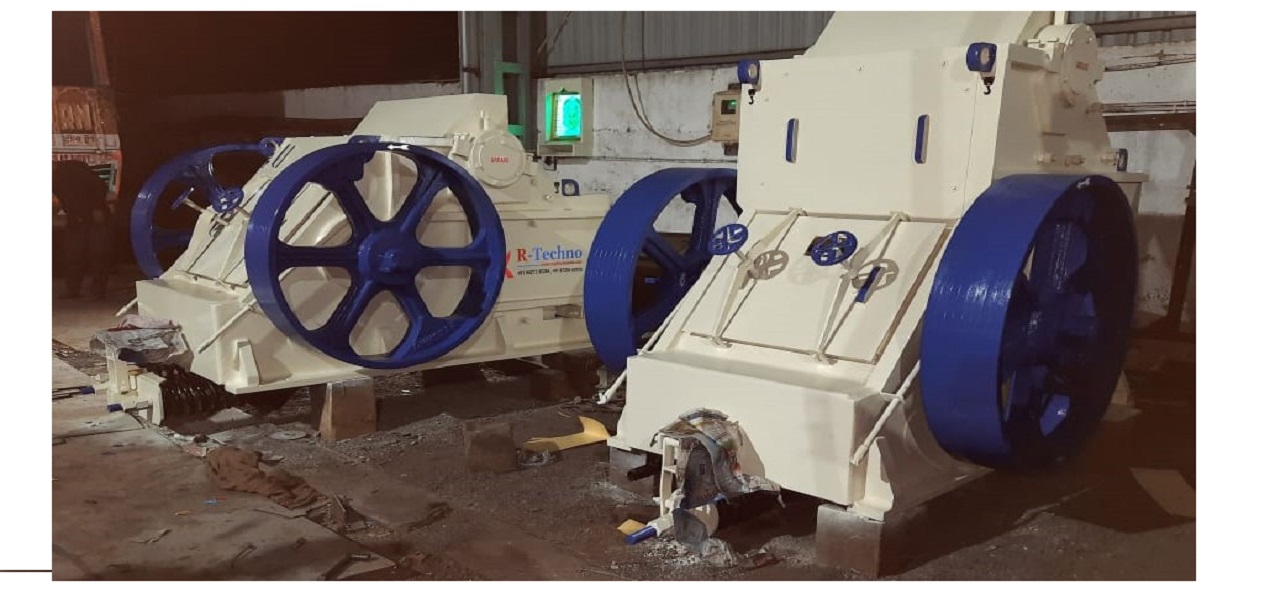

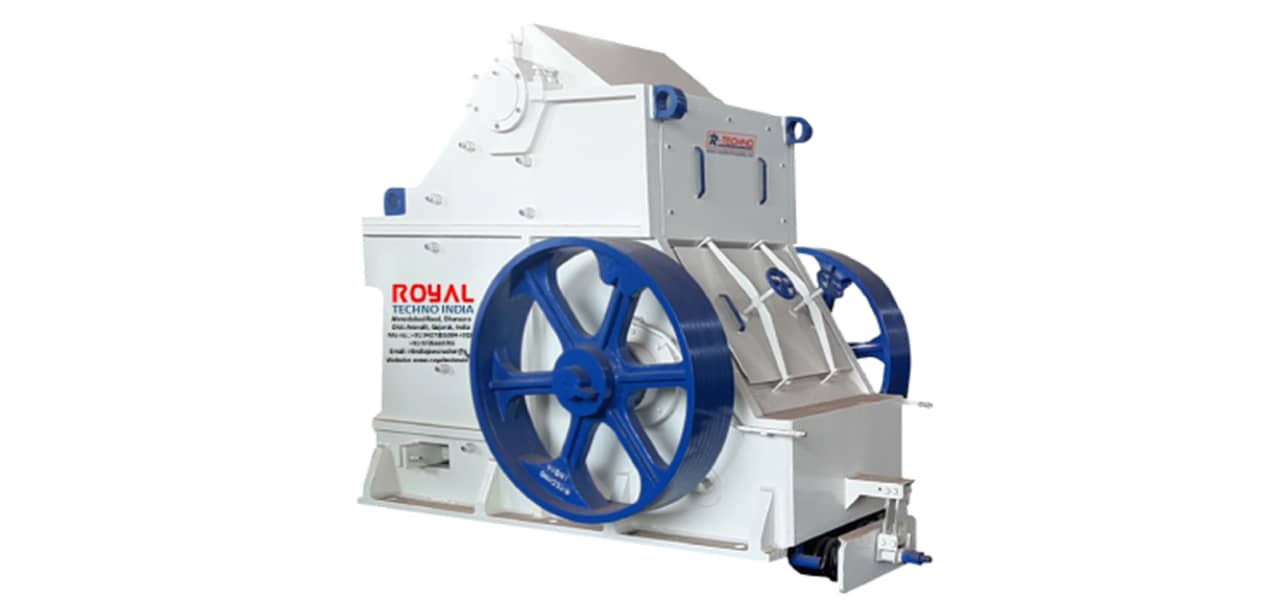

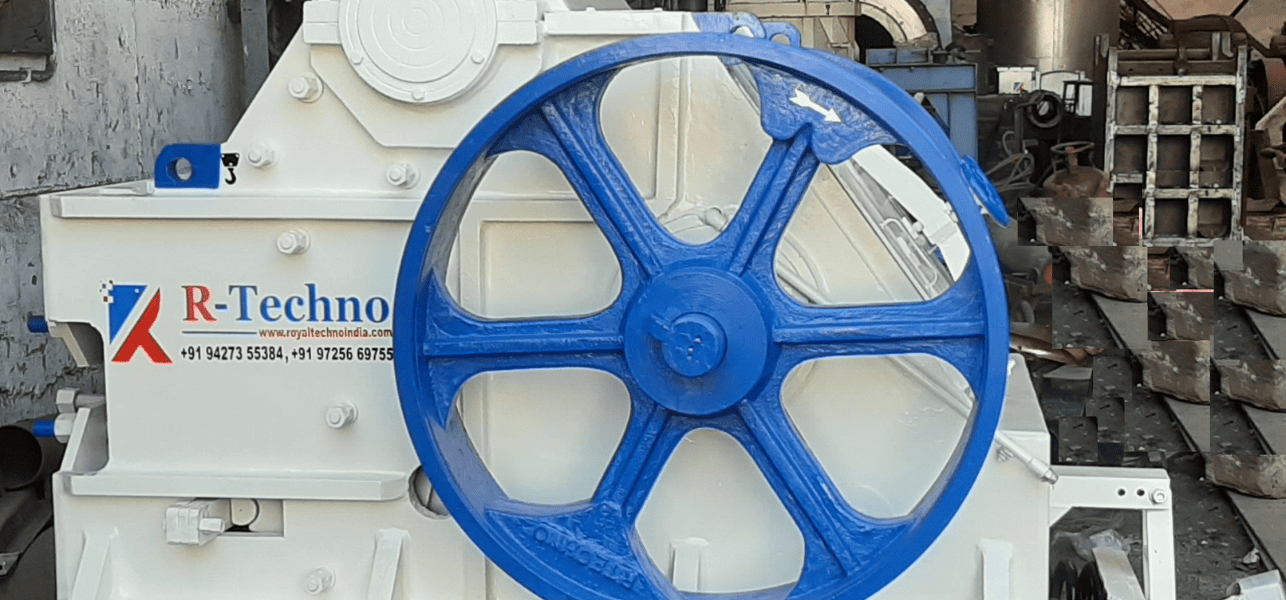

Double Toggle Oil Type Jaw Crusher

Oil type jaw crushers are configured for primary & secondary crushing of even hardest rock at hardest speed with minimum power. The crusher is designed on principal of crushing without rubbing, with high impact pressure. A closed chamber prevents dust thus our Jaw Crushers are considerably higher than that of conventional crushers. The company crushers are designed for long life service with minimum maintenance with high quality promised for hard, tough, abrasive material and overload high capacity.
Assembly has main body of mild steel, Pitman is always in compression condition, having unique design filled with metal, one is always in contact with crank shaft and other is in contact with Pin. Jaw works through front & rear toggle which are in contact with pitman & pin, thus the compression force diverts in three directions. Care should be taken of oil viscosity whether is not viscous then have to refill oil chamber. These crushers are high production capacity with low power consumption compare to grease type jaw crushers.

MODEL	SIZE (mm)	POWER* (HP)	CAPACITY*(TPH)	MAX. FEED SIZE (mm)
RTI-169OJC	400 x 225 mm	15-Oct	12-Jul	150 - 200
RTI-2012OJC	500 x 300 mm	25 - 30	15 - 20	200 - 250
RTI-2412OJC	600 x 300 mm	30	20 - 25	200 - 250
RTI-2414OJC	600 x 350 mm	30 - 40	28 - 32	250 - 300
RTI-309OJC	750 x 225 mm	40	25 - 30	175 - 200
RTI-3015OJC	750 x 375 mm	40 - 50	30 - 40	300 - 325
RTI-3020OJC	750 x 500 mm	50	50 - 60	400 - 450
RTI-3024OJC	750 x 600 mm	50 - 60	70 - 80	500 - 550
RTI-368OJC	900 x 200 mm	40 - 50	30 - 35	125 - 175
RTI-428OJC	1050 x 200 mm	50 - 60	40 - 45	125 - 175
RTI-488OJC	1200 x 200 mm	60 - 75	50 - 60	125 - 175
RTI-3624OJC	900 x 600 mm	75 - 100	80 - 100	500 - 550
RTI-3632OJC	900 x 800 mm	100 - 120	120 - 140	700 - 750
RTI-4230OJC	1050 x 750 mm	120 - 150	180 - 200	650 - 700
RTI-4836OJC	1200 x 900 mm	175 - 215	220 - 250	800 - 850
