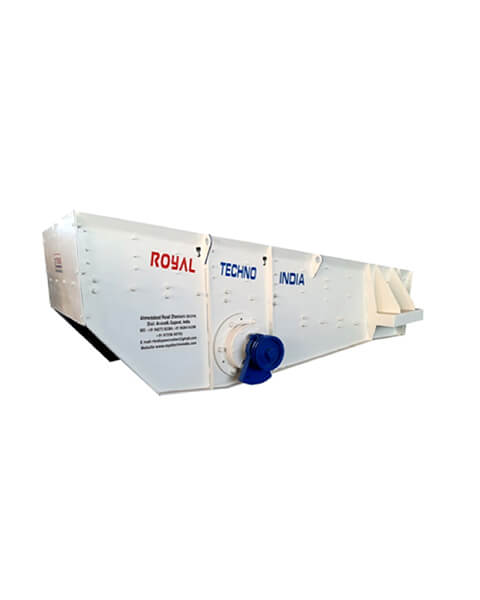

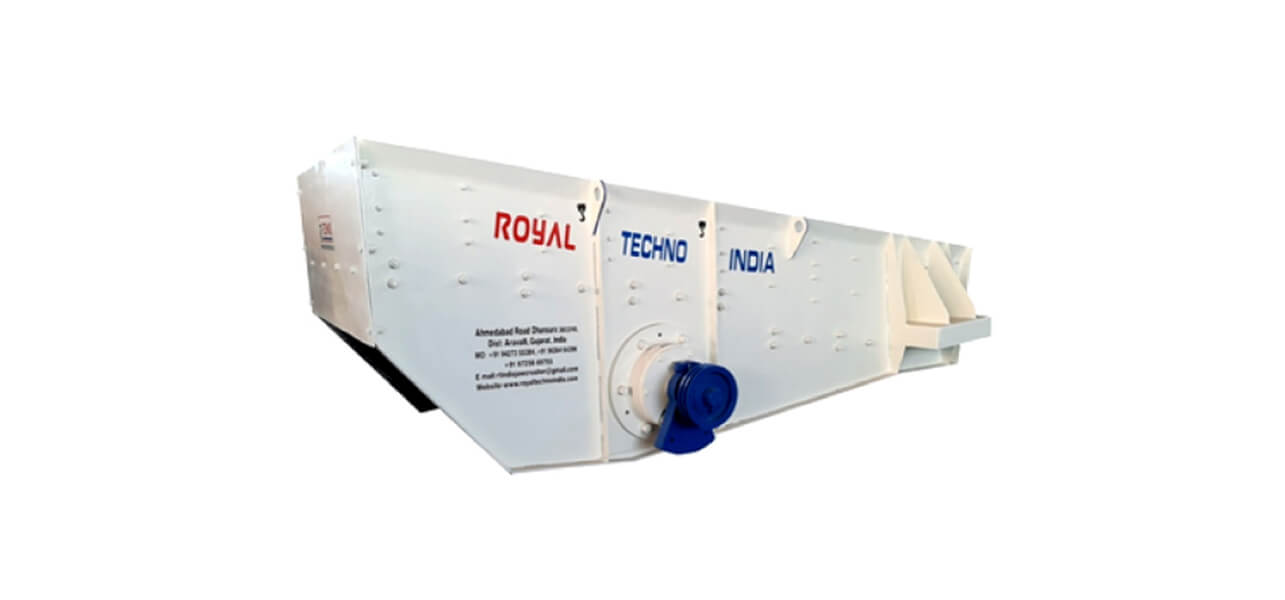

Vibrating, Grizzly & Pan Feeder
Vibrating, Grizzly & Pan feeder is suitable to feed crushers, selecting the large sizes which require primary crushing, the smaller sizes, and any fines which must be eventually rejected. R-TECHNO Grizzly is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Grizzly vibro feeder consists of a very large vibrating body made of thick plate, with inside lining of anti-abrasive plate. The Grizzly vibro feeder is driven by two vibrating motors or eccentric shaft.
Salient Features:
- Special design of grizzly bars eliminates material clogging and to better sizing effect
- Sets of load springs stand to better stabilize the operation
- Co2 welded frame for better wear resistant
- Adjustable bolted grizzly bars to meet specific size requirement
- Special bar to prevent the block of raw material
MODEL | SIZE (mm) | POWER* (HP) | CAPACITY* (TPH) |
---|---|---|---|
RTI-63VF | 1800 x 900 | 5 | 30-Oct |
RTI-83VF | 2400 x 1000 | 7.5 - 10 | 30 - 50 |
RTI-84VF | 2400 x 1200 | 10 - 12.5 | 40 - 70 |
RTI-104VF | 3000 x 1200 | 15 | 80 - 120 |
RTI-124VF | 3600 x 1200 | 20 | 120 - 180 |
RTI-144VF | 4200 x 1200 | 25 | 180 – 250 |
