Vibrating Screen
Vibrating Screen

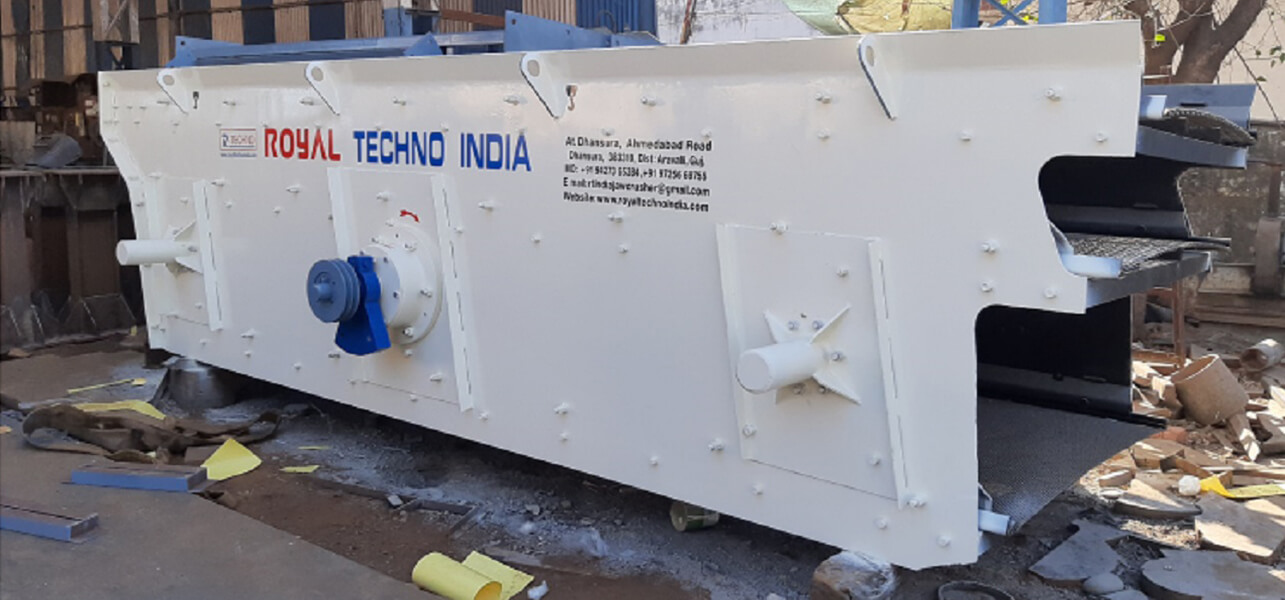

R-TECHNO Vibrating Screens are designed to make separation / filtration of crushed material from fine dust to oversize. Screens are driven by electric vibrating motors provided with the screen. The screen frame rests flexible on springs units provided on support construction, so as the eliminate jerks to the supporting systems and to vibrate freely in a linear motion.
| MODEL | SIZE (mm) | POWER* (HP) | SCREENING CAPACITY* (TPH) |
|---|---|---|---|
| RTI-63VS | 1800 X 900 | 3 | 05-02 |
| RTI-83VS | 2400 x 900 | 3 | 08-04 |
| RTI-103VS | 3000 x 900 | 3 | 10-05 |
| RTI-104VS | 3000 X 1200 | 5 | 15 - 25 |
| RTI-124VS | 3600 X 1200 | 7.5 | 30 - 40 |
| RTI-154VS | 4500 X 1200 | 7.5 – 12.5 | 40 - 50 |
| RTI-165VS | 4800 X 1500 | 12.5 - 15 | 55 - 65 |
| RTI-185VS | 5400 X 1500 | 20 | 70 - 90 |
| RTI-186VS | 5400 X 1800 | 20 - 25 | 80 - 110 |
| RTI-205VS | 6000 X 1500 | 25 - 30 | 80 - 110 |
| RTI-206VS | 6000 X 1800 | 30 | 120 - 150 |
| RTI-186HFVS | 5400 X 1800 | 30 | 150 - 200 |
| RTI-206HFVS | 6000 X 1800 | 40 | 200 -250 |
